Product Features #
- Extremely low power
- Embedded Internet Services Protocols
- Quectel Enhanced AT Commands
- Built-in and external antenna options
Cellular Communication #
- Module SIM7500-E
- Brand Name SIMCom
- FCC ID UDV-201606
- TAC 86147503
Main #
| Range of Product | NORVI Expansion |
| Product Type | Expansion Module |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU- Electromagnetic Compatibility (EMC) Annex III, Part B, Module C |
| Applicable Devices | NORVI IIOT / NORVI Arita |
| Rated supply voltage | 24V DC |
| Field of Application | GSM LTE Communication |
| RF Band | B1 @H-FDD: 2100MHz B3 @H-FDD: 1800MHz B8 @H-FDD: 900MHz B5 @H-FDD: 850MHz B20 @H-FDD: 800MHz B28* @H-FDD: 700MHz |
| RF Output power | 23dBm±2dB |
| Displays and Visual Indicators | 1 LED green for Power 1 LED green for Communication |
Complementary #
| Product Unified Code | NORVI-EX-LTE |
| Product Part Numbers | NORVI-EX-LTE |

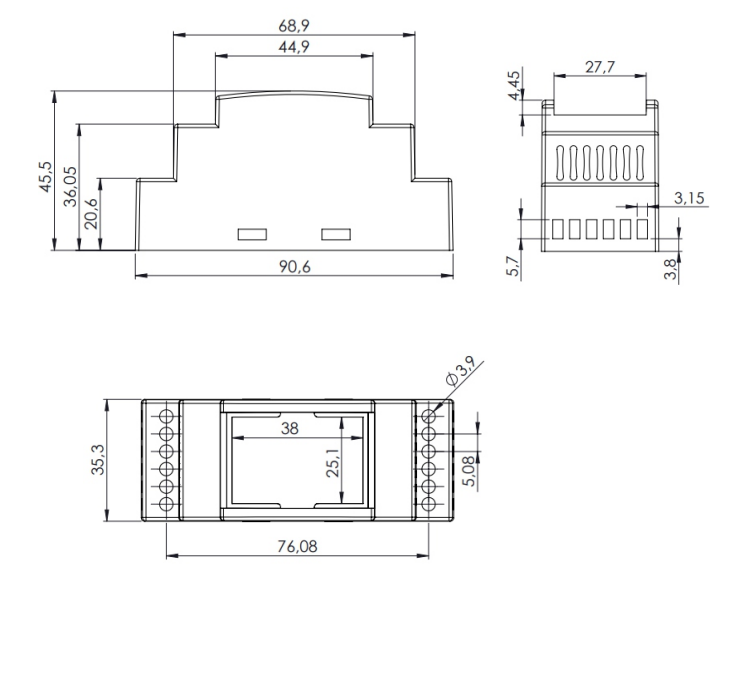

Mechanical Properties #
| Enclosure | NORVI 202 |
| Mounting / Installation Method | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 |
| Terminal Type | Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Length | 59.00 mm |
| Height | 86.00 mm |
| Width | 35.00 mm |
Environment #
| IP degree of protection | IP20 |
| Operating altitude | 0 – 2000 meters |
| Operating Temperature | – –10 … +85° C (14…185 °F) |
| Storage altitude | 0 – 3000 meters |
| Shock resistance | 15 gn for 11ms |
| Resistance to electrostatic discharge | 4kV on contact 8kV on air |
| Resistance to electromagnetic fields | 10 V/m (80 MHz …… 1GHz) 3 V/m (1.4 MHz …… 2 GHz) 1 V/m (2 MHz …… 3 GHz) |
Electrical Characteristics #
Grid Powered Devices #
| Rated Supply Voltage (V) | 24V DC |
| Current Consumption (mA) | 400mA |
| Recommended Power Source | 1A, 24V DC |
LTE Communication #
| Model of GSM Modem | SIM7500 |
| FCC ID | 2AQ9M-SIM7500 |
| TAC | 86147503 |
| RXD | Expansion pin1 |
| TXD | Expansion pin 2 |
| RESET | Expansion pin 4 |

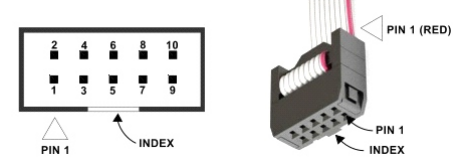

Expansion Port #
| PIN | ESP32 Connection |
| 1 | LTE – RXD |
| 2 | LTE – TXD |
| 3 | – |
| 4 | LTE – RESET |
| 5 | NRST |
| 6 | GPIO32 |
| 7 | SCL |
| 8 | – |
| 9 | GND |
| 10 | SDA |
