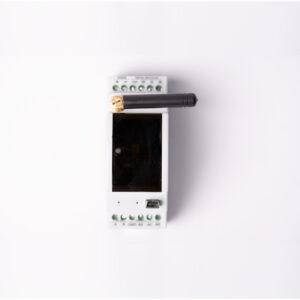

External Antenna

Agent One

Industrial IoT Node

Clear
ESP32 Logo
LoRa communication
NB-IoT communication

Processors

ESP32-WROOM32

Dual Core 32bit 160-Mhz CPU

520 Kbytes SRAM / 4 Mb Flash

Two timer groups, including 2 x 64-bit timers and 1 x main

watchdog in each group

STM32L151xE



Ultra Low Power

ARM® Cortex®-M3 32-bit CPU
512KB Flash
80KB SRAM / 16KB EEPROM

Communication

LoRa communication
NB-IoT communication

Features

Pixel RGB Led Indicator

DS3221 RTC

SMA External Antenna

NORVI SMA Connector

Ultra Low Energy Battery Powered Applications

Agent One Industrial Controllers are offered for low power applications as well, devices controlled by STM32L series micro-controller are used for Ultra Low Power applications where you need to run the devices from batteries for years. Agent One BT range is specially designed with transistor outputs to power down external sensors when the device goes to sleep.

Operating system and Software

  1. Arduino (C++)
  2. MicroPyton
  3. ESP-IDF (Espressif IoT Development Framework)
  4. Zephyr Project
  5. Mongoose OS

AT01-BM1

3X

24V

Sink/Source Digital Inputs

3 X

0-10V Analog Inputs

1 X

RS-485

AT01-BM2

3X

24V

Sink/Source Digital Inputs

3 X

4-20mA current input esp32

0 -20 mA Analog Inputs

1 X

RS-485

AT01-BT1

3X

24V

Sink/Source Digital Inputs

3 X

0 - 10V Analog Inputs

2 X

Open collector Transistor

AT01-BT2

3X

24V

Sink/Source Digital Inputs

3 X

4-20mA current input esp32

0 - 20mA Analog Inputs

2 X

Open collector Transistor

AT01-BT3

3X

24V

Sink/Source Digital Inputs

2 X

temperature_453445

Thermocouple Inputs

2 X

Open collector Transistor

AT01-BT5

3X

24V

Sink/Source Digital Inputs

3 X

0 - 10V Analog Inputs

1 X

Relay 5A

AT01-BT6

3X

24V

Sink/Source Digital Inputs

3 X

4-20mA current input esp32

0 - 20mA Analog Inputs

1 X

Relay 5A

Applications

  • Machine Monitoring
  • Low power sensor node
  • Simple process controller
  • Datalogger
  • WiFi – NB-IoT Bridge
  • Modbus Gateway
  • MQTT Gateway

Downloads

Datasheet
Product Brochure
Arduino Libraries Example program
