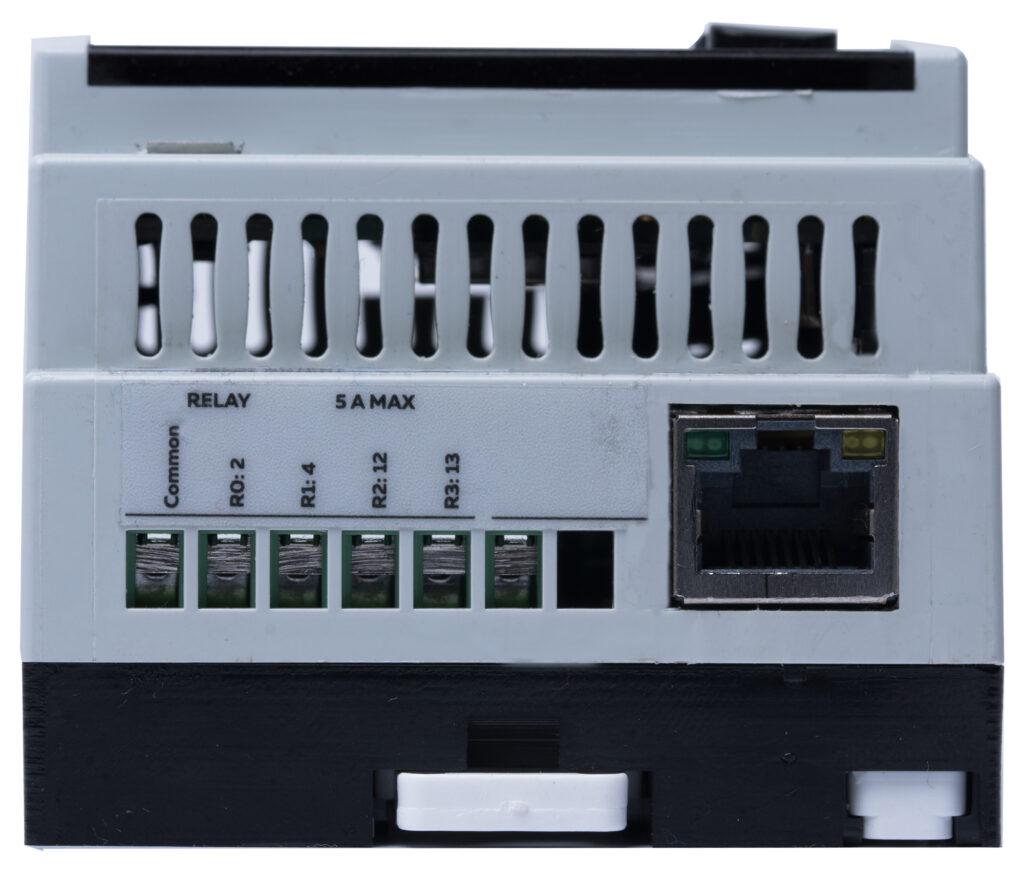

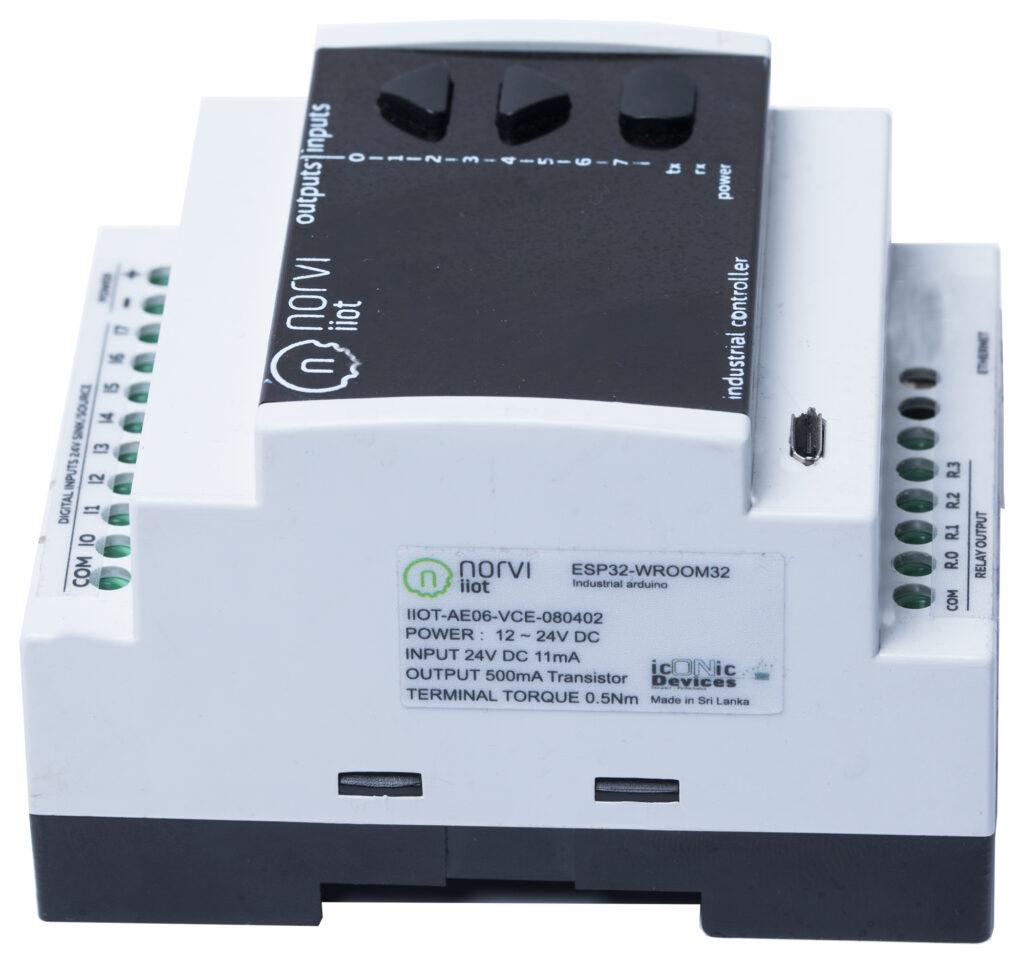

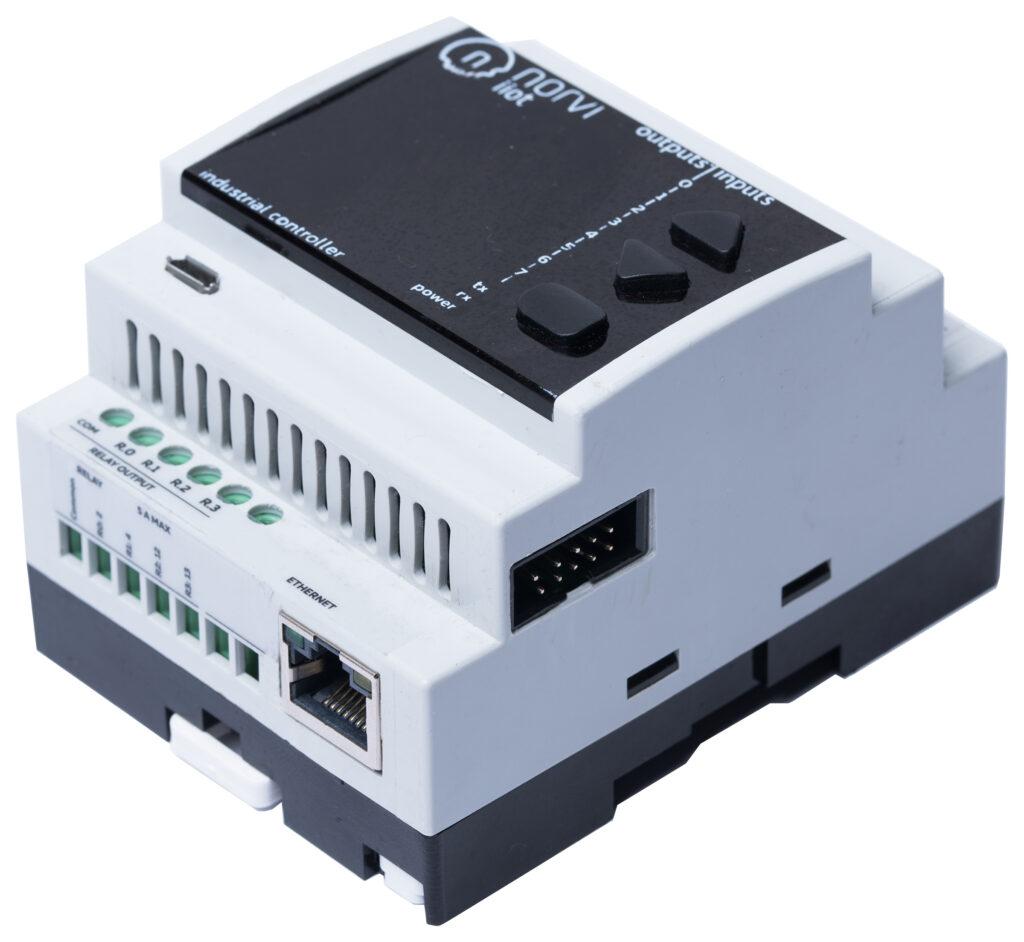

NORVI ENET

  • ESP32-WROOM32 Module
  • W5500 Ethernet Connectivity
  • Built-in 0.96 OLED Display
  • Built-in microSD Card
  • Built-in RTC
  • Digital Inputs
  • Analog Inputs
  • Relay Outputs
  • DIN-Rail mount

Industrial ESP32 Ethernet Controller

USB Programmable Industrial ESP32 with OLED Display and din-rail mount. NORVI ENET Series comes with built-in Ethernet. Expanding its connectivity.

NORVI ENET range is the idea choice for ESP32 Ethernet implementations, where industrial level I/O and voltages are present. ESP32 Ethernet provides both Wireless and wired connections to the network.
It is designed for protection and reliability. Complying with  2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C (Conformity to Type Based on Internal Production Control).

Processors

ESP32 WROOM32

Dual Core 32bit 160-Mhz CPU

520 Kbytes SRAM / 4 Mb Flash

WIFI 802.11 b/g/n Bluetooth v4.2

Two timer groups, including 2 x 64-bit timers and 1 x main

Ethernet

W5500 Ethernet Connectivity
TCP, UDP, ICMP, IPv4, ARP, IGMP,
10BaseT/100BaseTX Ethernet PHY embedded​
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )

Expansion Modules Supported

LoRa communication
NB-IoT communication
4-20mA current input esp32

Standard Models

AE06-R

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

4 X

5A Relay outputs

0.96' OLED Display

microSD card support

micro SD Card support

AE06-T

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

4 X

Open collector Transistor

0.96' OLED Display

microSD card support

micro SD Card support

AE06-V

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

4 X

0-10V Analog Inputs

0.96' OLED Display

microSD card support

micro SD Card support

AE06-I

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

4 X

4-20mA current input esp32

4-20mA Analog Inputs

0.96' OLED Display

microSD card support

micro SD Card support

Applications

Downloads

Datasheet AE06E
