NORVI-EX-I16 Datasheet

Product Characteristics #

NORVI-EX-I16
MCP230017 I2C GPIO Expander
16 x Digital Inputs Sink / Source

Product Certifications #

Product is certified to comply with CE Standards
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C

EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018

Product Specifications #

Range of ProductNORVI EX
Product typeI/O Expansion Module
Rated supply voltage24V DC
Discrete input number16 discrete input
CommunicationI2C
Main
Supply voltage limits20.4….28.8V
Inrush current<=10A
Discrete logic inputSink or source
Discrete input voltage24V DC
Voltage state 1 guaranteed=15 V for input
Voltage state 0 guaranteed<=5 V for input
Discrete input current5 mA for input
Input impedance4.7k Ohm for input
Local signaling1 LED green for PWR
Electrical connectionRemovable screw terminal block for inputs and outputs
(pitch 5.08 mm)
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit
Height90.50 mm
Depth56.60 mm
Width60.60 mm
Product weight0.18 Kg
Complementary

Environment #

Resistance to electrostatic discharge4kV on contact
8kV on air
Resistance to electro magnetic fields10 V/m (80 MHz …… 1GHz)
3 V/m (1.4 MHz …… 2 GHz)
1 V/m (2 MHz …… 3 GHz)
Immunity to microbreaks10 ms
Relative humidity10….95% without condensation in operation
IP degree of protectionIP20
Operating altitude0…2000m
Operating Temperature–40°C to +125°C
Storage altitude0…3000m
Shock resistance15 gn for 11 ms
Environment

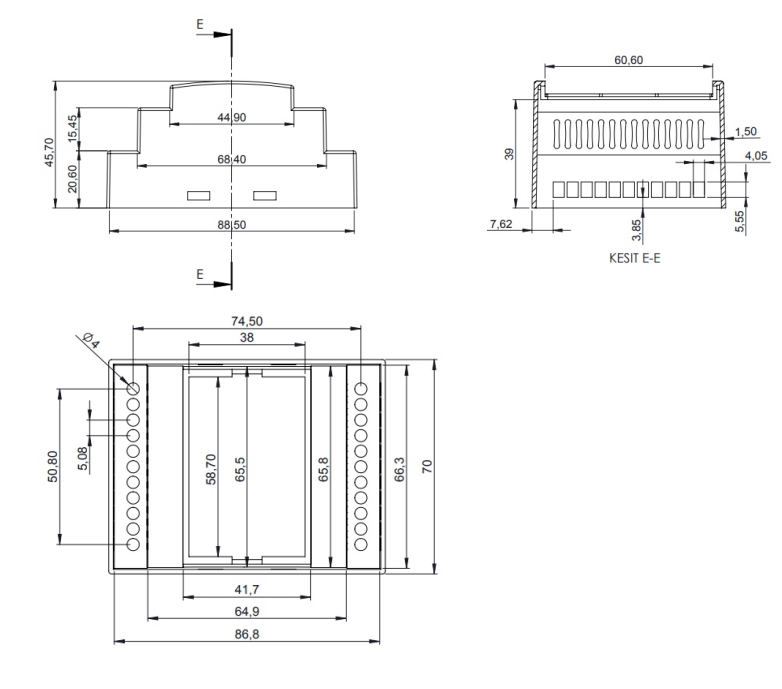

Dimensions #

NORVI-EX

Terminal Layout #

NORVI-EX-I16

GPIO Allocation #

MCP230008I/O
GP0I0 – DIGIAL INPUT 0
GP1I1 – DIGIAL INPUT 1
GP2I2 – DIGIAL INPUT 2
GP3I3 – DIGIAL INPUT 3
GP4I4 – DIGIAL INPUT 4
GP5I5 – DIGIAL INPUT 5
GP6I6 – DIGIAL INPUT 6
GP7I7 – DIGIAL INPUT 7
GP8I8 – DIGIAL INPUT 8
GP9I9 – DIGIAL INPUT 9
GP10I10 – DIGIAL INPUT 10
GP11I11 – DIGIAL INPUT 11
GP12I12 – DIGIAL INPUT 12
GP13I13 – DIGIAL INPUT 13
GP14I14 – DIGIAL INPUT 14
GP15I15 – DIGIAL INPUT 15
MCP23008
I2C SDAGPIO16
I2C SCLGPIO17

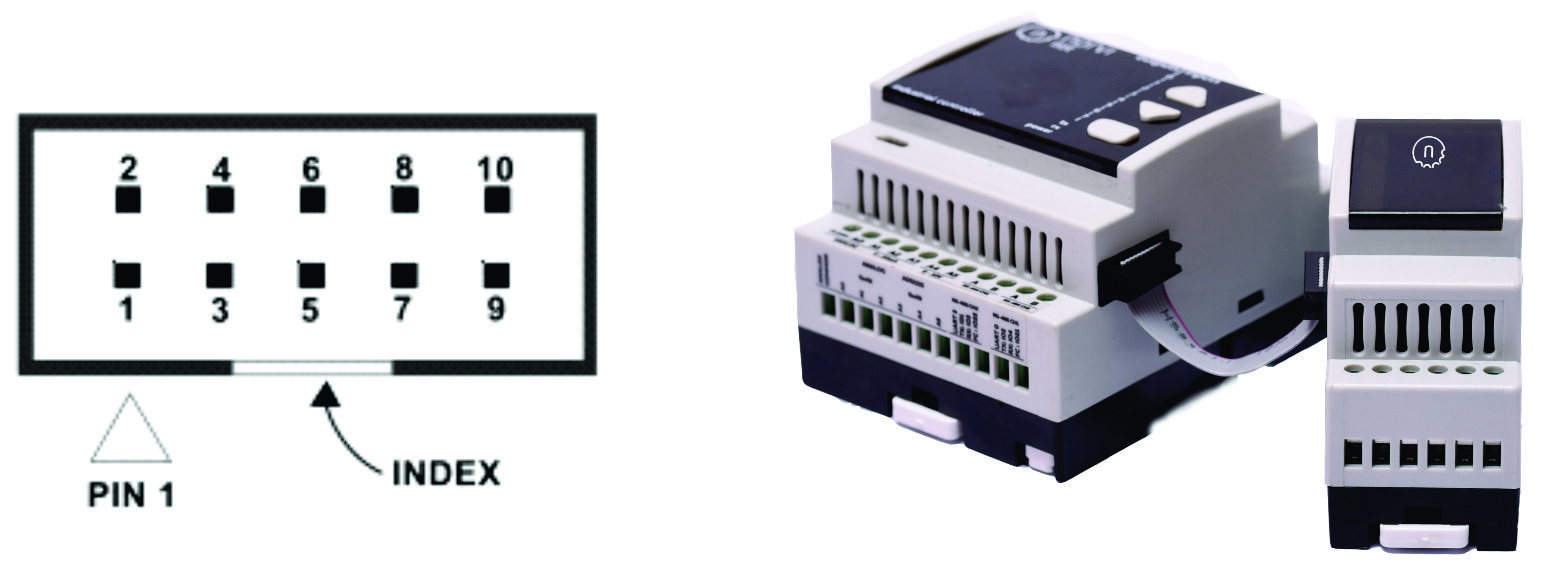

Expansion Port Connection

Expansion Port #

The expansion port of the NORVI IIOT Controllers can be utilized for external sensor connections where raw GPIO connections are required or they can be used to plug NORVI Expansion Modules

Browse NORVI Expansion Product range

How to Connect NORVI Expansion Modules

Expanding NORVI Controller

I2C Address Setting #

I2C Address of the expansion module can be configured by switching DIP Switches in the bottom of the expansion module. The device can be configured in 8, I2C addresses using the first 3, DIP switches.
