Product Features #
- ESP32-WROOM32 Module
- Built-in 0.96 OLED Display
- microSD Card Support
- DS3231 RTC with Battery Backup
- Built-in Button on the front panel
- Digital Inputs
- Analog Input
- Transistor Outputs
- DIN-Rail mounts
- Supports Expansion ports
Expansions Supported
- Digital Input
- Analog Input
- Transistor Output
Main #
Range of Product | Product Type |
Product type | Programmable Controller |
Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU- Electromagnetic Compatibility (EMC) Annex III, Part B, Module C |
Rated supply voltage | 24V DC |
Communication | WiFI 2.5GHz / Bluetooth RS-485 |
Inputs and Outputs | 6 x Digital Inputs 6 x Analog Inputs with 4-20 mA 2 x Transistor Outputs |
Displays and Visual Indicators | 0.96 OLED Display and Indicators |
Complementary #
Product Unified Code | NORVI IIOT-AE04-I |
Product Part Numbers | NORVI IIOT-AE04-I |

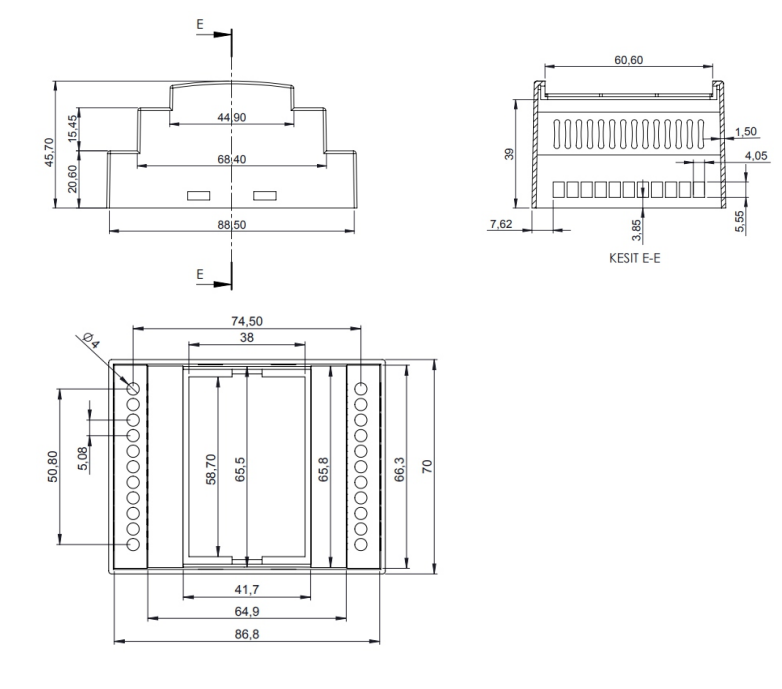

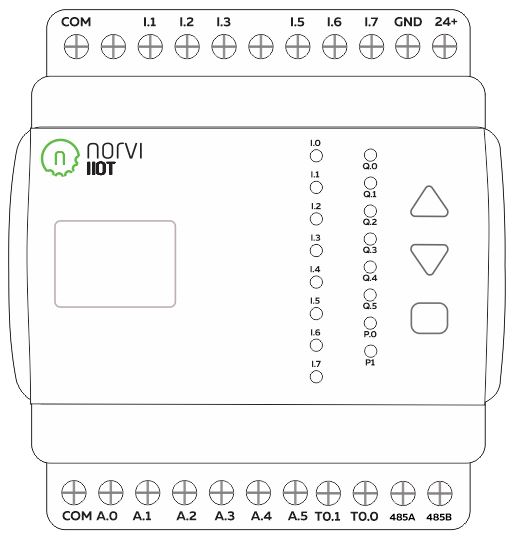

Mechanical Properties #
Enclosure | NORVI 204 |
Mounting / Installation Method | DIN RAIL / MOUNTING TABS |
Terminal Type | SCREW TERMINAL |
Terminal Arrangement | Top and Bottom |
Length | 90.50 mm |
Height | 56.60 mm |
Width | 60.60 mm |
Environment #
IP degree of protection | IP20 |
Operating altitude | 0–2000 meters |
Operating Temperature | – -10… +85° C (14…185 °F) |
Storage altitude | 0–3000 meters |
Shock resistance | 15 gn for 11ms |
Resistance to electrostatic discharge | 4 kV on contact 8 kV on air |
Resistance to electromagnetic fields | 10 V/m (80 MHz …… 1GHz) 3 V/m (1.4 MHz… 2 GHz) 1 V/m (2 MHz, 3 GHz) |
Electrical Characteristics #
Grid-powered devices #
Rated Supply Voltage (V) | 24V DC |
Current Consumption (mA) | 400mA |
Recommended Power Source | 1A, 24V DC |
Processing #
SOC / MCU | ESP32-WROOM32 |
Flash Memory | 4MB |
ROM | 448 KB |
SRAM | 520 KB |
PSRAM | NOT AVAILABLE |
Peripherals #
MicroSD Card support #
Card Type | microSD |
Interface | SPI |
SD CARD CS | GPIO5 |
MISO | GPIO19 |
MOSI | GPIO23 |
SCLK | GPIO18 |
SD Detect | NOT CONNECTED |
Internal RTC #
RTC Chip | DS3231 |
Backup Battery Type | CR2032 |
Interface | I2C |
I2C Address | 0x68 |
SCL Pin | GPIO17 |
SDA Pin | GPIO16 |
Built-in Buttons #
Button 1 Pin | GPIO32 Analog Input Level 1 |
Button 2 Pin | GPIO32 Analog Input Level 2 |
Button 3 Pin | GPIO32 Analog Input Level 3 |
OLED Display #
Display Driver | SSD1306 |
Display Size | 0.96 inch |
SCL PiN | GPIO17 |
SDA Pin | GPIO16 |
RESET Pin | NOT CONNECTED |
INPUTS and OUTPUTS #
Digital Inputs #
Number of Digital Inputs | 6 |
Digital Input Polarity | Sink and Source |
Digital Input Maximum Voltage | 32V DC |
Digital Input Minimum Voltage | 18V DC |
Maximum Switching Frequency | 1 kHZ |
Terminal Arrangement | Digital Input 1 – GPIO39 Digital Input 2 – GPIO34 Digital Input 3 – GPIO35 Digital Input 5 – GPIO21 Digital Input 6 – GPIO22 Digital Input 7 – GPIO15 |
Analog Inputs #
Number of Analog Inputs | 6 |
Analog Input Measurement Range | 4 – 20mA |
Analog Input Maximum Voltage | 38V DC |
Analog to Digital Converter (ADC) | ADS1115 |
Analog to Digital Converter (ADC) Communication | I2C |
Analog to Digital Converter (ADC) Address | 0x48, 0x49 |

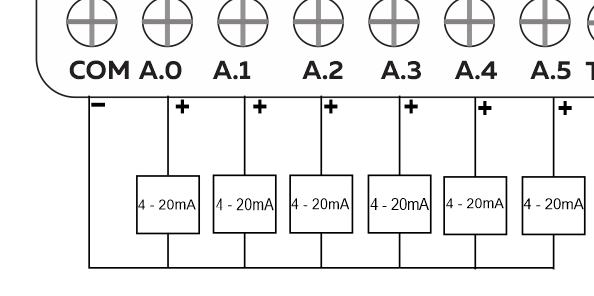

Terminal Arrangement | A0 : Analog Input 0 – ADS1115 – 0x48 – AIN0 A1 : Analog Input 1 – ADS1115 – 0x48 – AIN1 A2 : Analog Input 2 – ADS1115 – 0x48 – AIN2 A3 : Analog Input 3 – ADS1115 – 0x48 – AIN3 A4 : Analog Input 4 – ADS1115 – 0x49 – AIN0 A5 : Analog Input 5 – ADS1115 – 0x49 – AIN1 |
Transistor Outputs #
Number of Transistor Outputs | 2 |
Transistor Output Type | OPEN COLLECTOR |
Maximum Sink/Source Current (mA) | 100mA |
Maximum Applicable Voltage | 40V DC |
Maximum Switching Frequency | 1 kHz |
Terminal Arrangement | T0.0 – GPIO26 T0.1 – GPIO27 |
Communication Channels #
RS-485 Communication #
Communication Mode | HALF-DUPLEX |
Transceiver | MAX485 |
Unit Load | 1/4 |
Flow Control / Direction Control Pin | GPIO4 |
TX Pin | GPIO2 |
RX Pin | GPIO13 |
Terminal Arrangement |
GPIO Map #
GPIO | Description | Usage |
0 | outputs PWM signal at boot | NRST |
1 | debug output at boot | |
2 | RS485 | TX |
3 | HIGH at boot | |
4 | RS-485 | Flow Control |
5 | outputs PWM signal at boot | |
12 | ||
13 | RS485 | RX |
14 | outputs PWM signal at boot | |
15 | input only | Digital Input 5 |
16 | SDA | I2C |
17 | SCL | I2C |
18 | SCLK | |
19 | MISO | |
21 | input only | Digital Input 3 |
22 | input only | Digital Input 4 |
23 | MOSI | |
25 | Expansion Port | Pin 1 |
26 | Transistor output 0.0 | |
27 | Transistor output 0.1 | |
28 | ||
32 | Analog Input | Buttons |
33 | ||
34 | input only | Digital Input 1 |
35 | input only | Digital Input 2 |
38 | ||
39 | input only | Digital Input 0 |

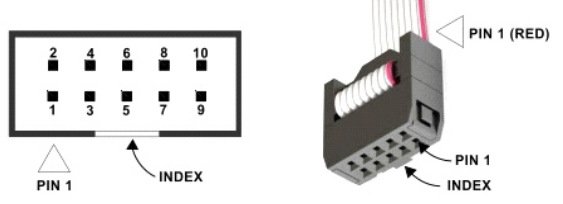

Expansion Port #
PIN | ESP32 Connection |
1 | IO25 |
2 | TXD0 |
3 | NOT CONNECTED |
4 | RXD0 |
5 | BOOT IO0 |
6 | IO32 |
7 | NOT CONNECTED |
8 | SCL – GPIO17 |
9 | GROUND |
10 | SDA – GPIO16 |
