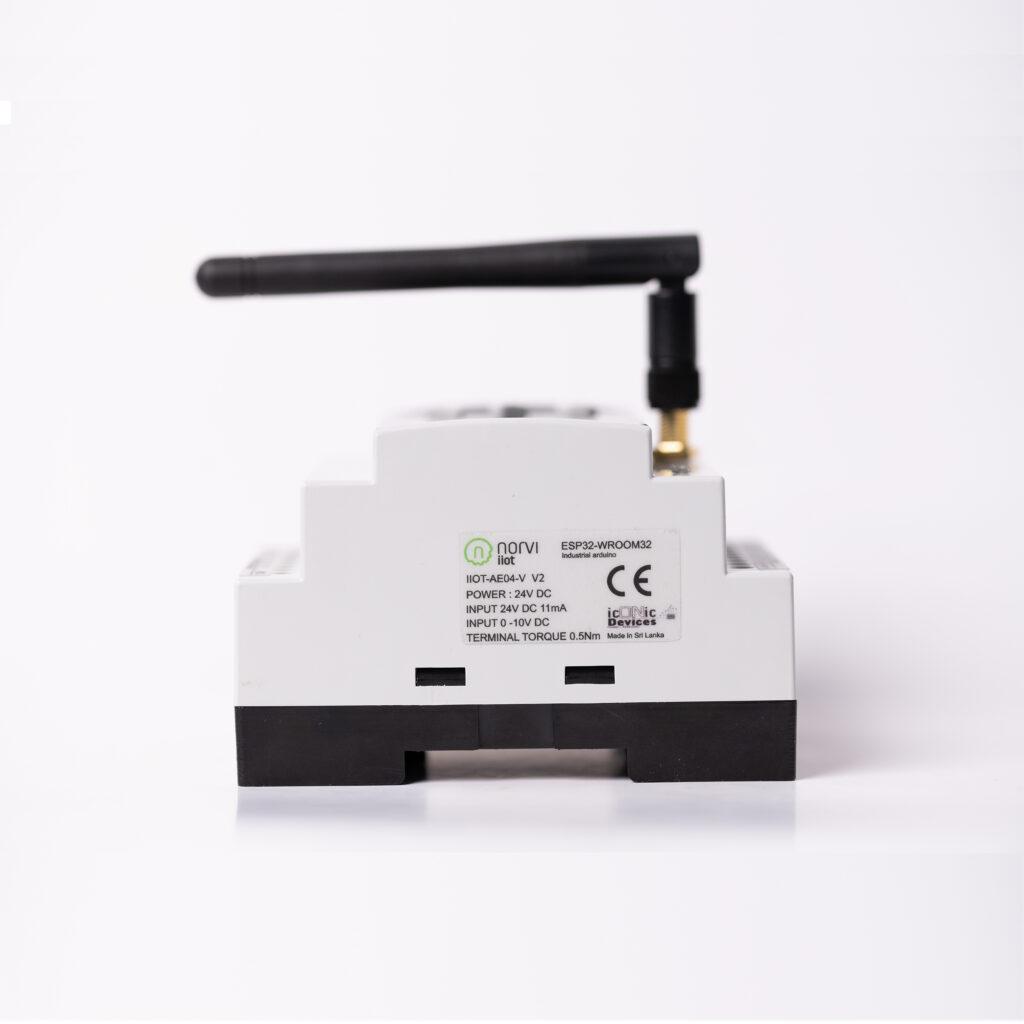

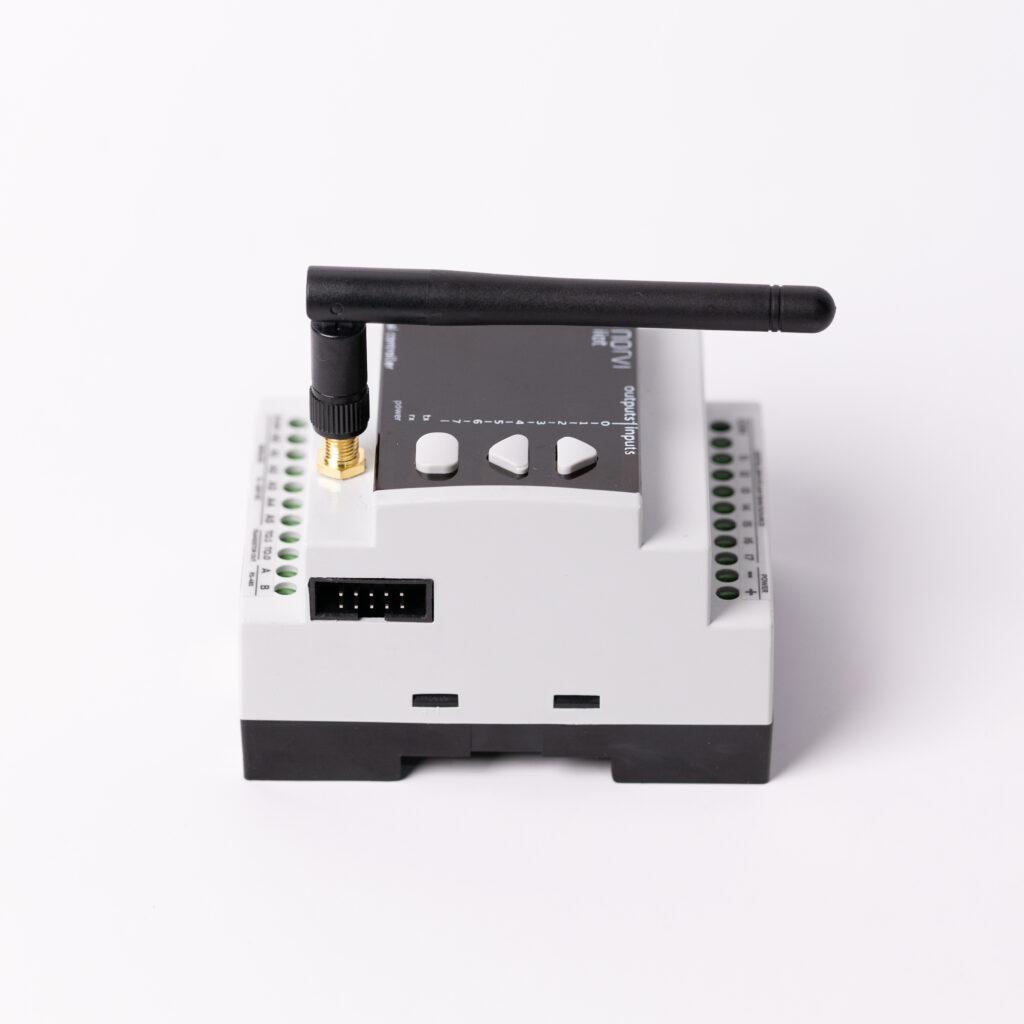

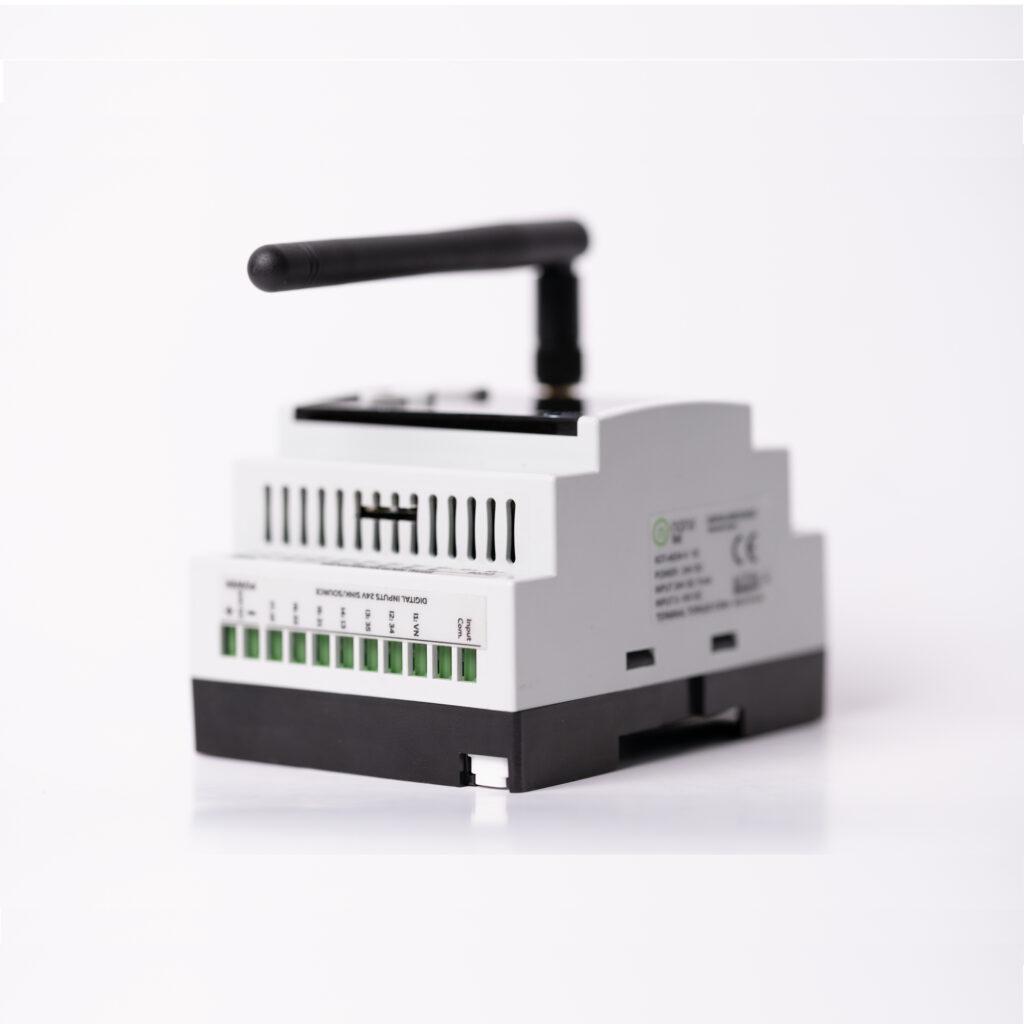

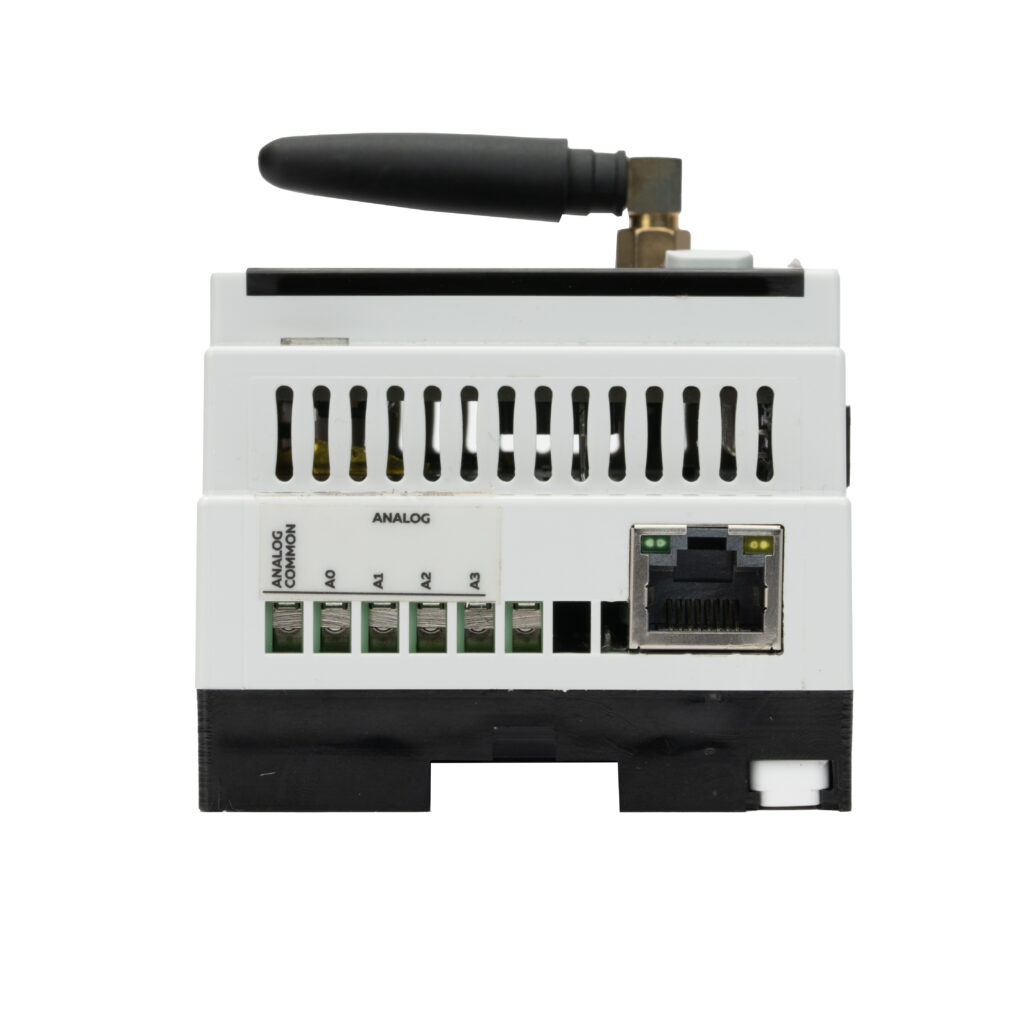

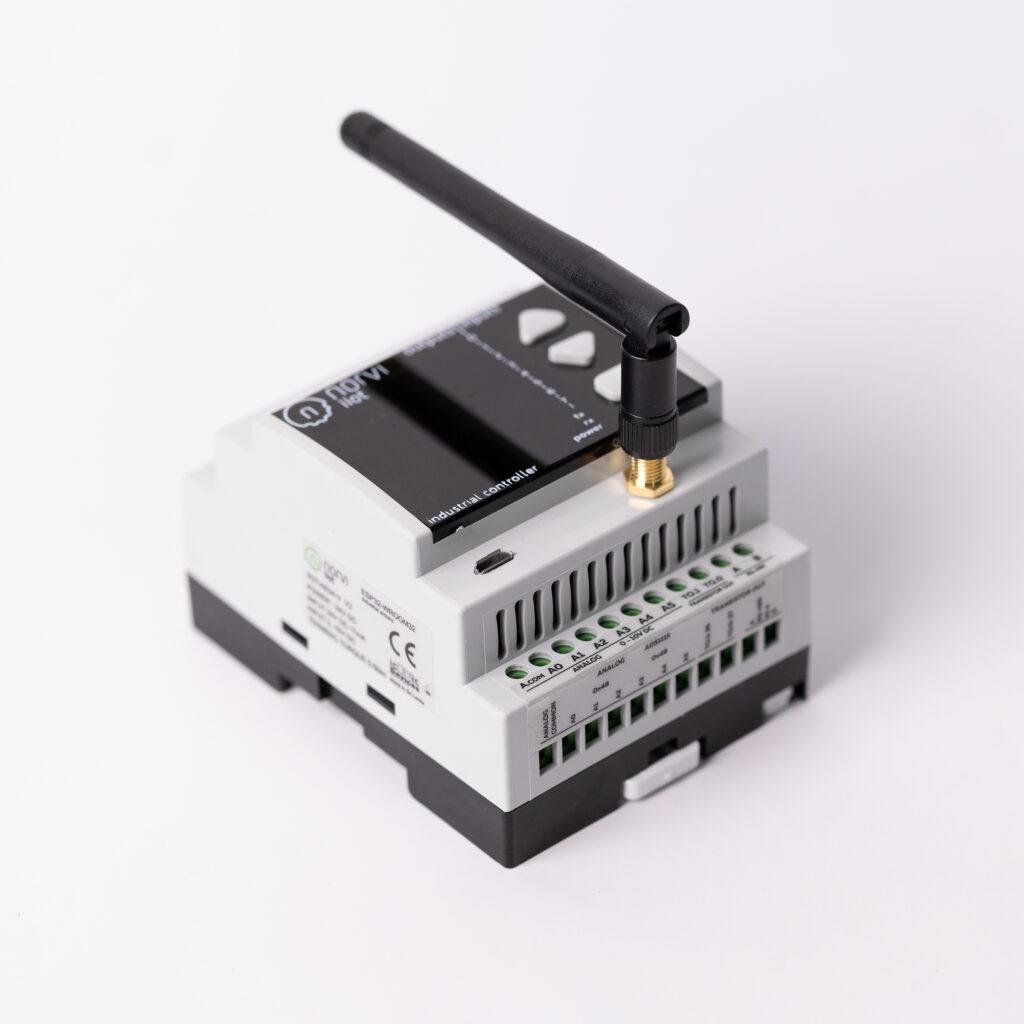

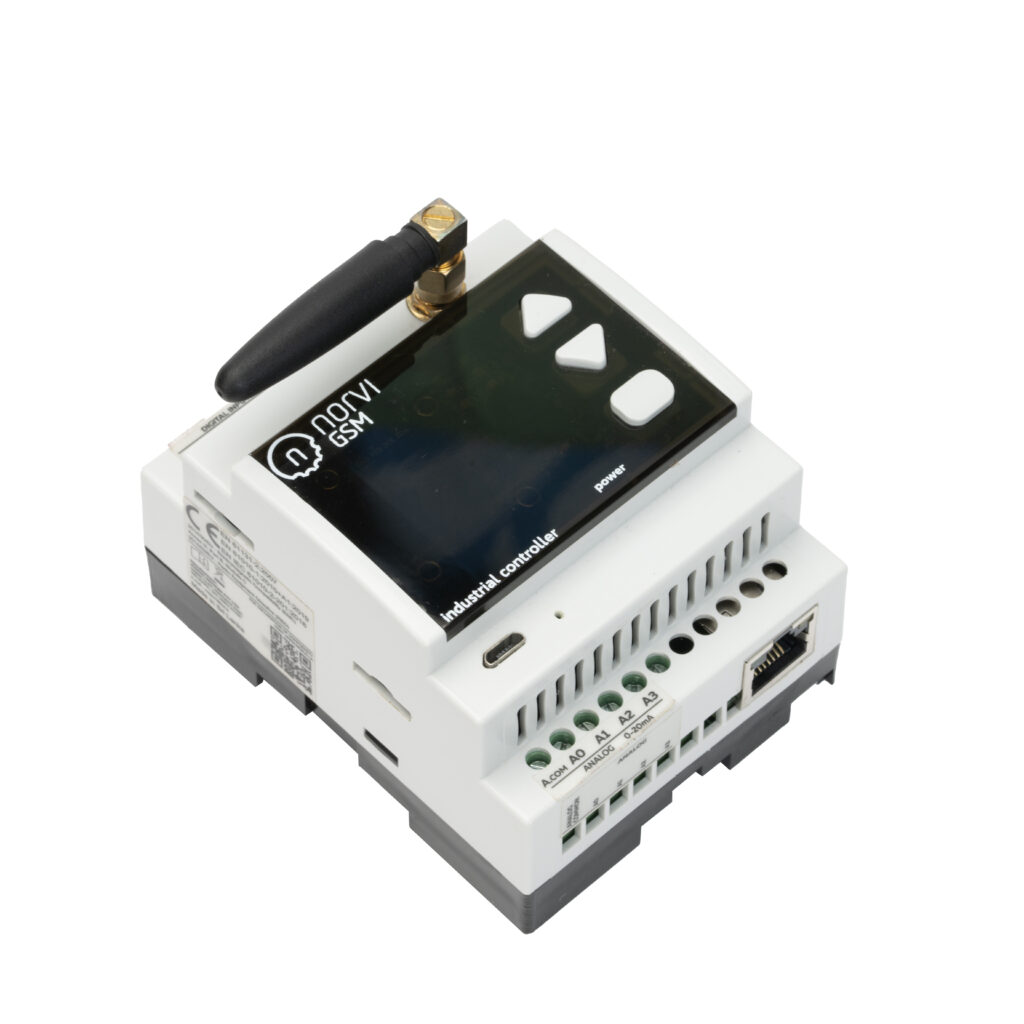

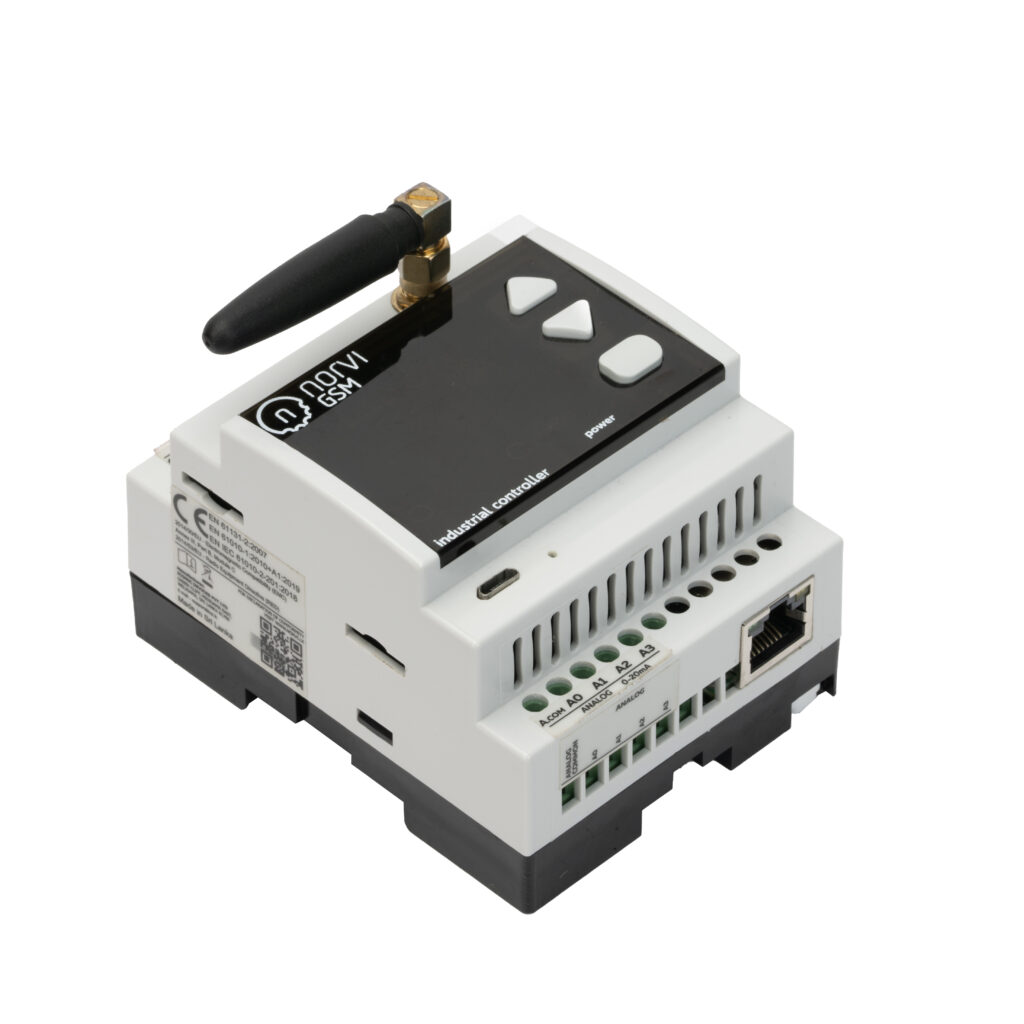

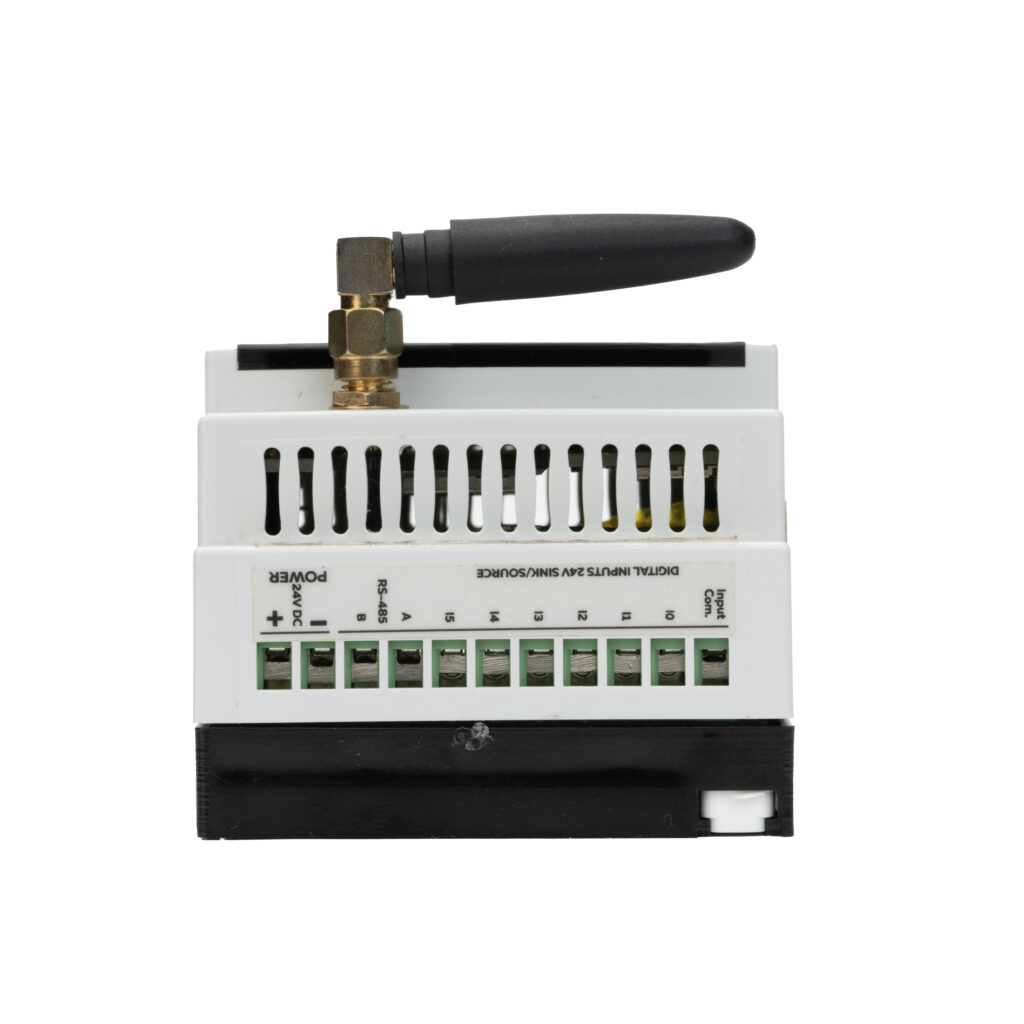

NORVI GSM

  • ESP32-WROOM32 Module
  • GSM / LTE Connection
  • Built-in 0.96 OLED Display
  • Built-in Button on front panel
  • Digital Inputs
  • Analog Inputs
  • Relay Outputs
  • Ethernet Connectivity
  • DIN-Rail mount

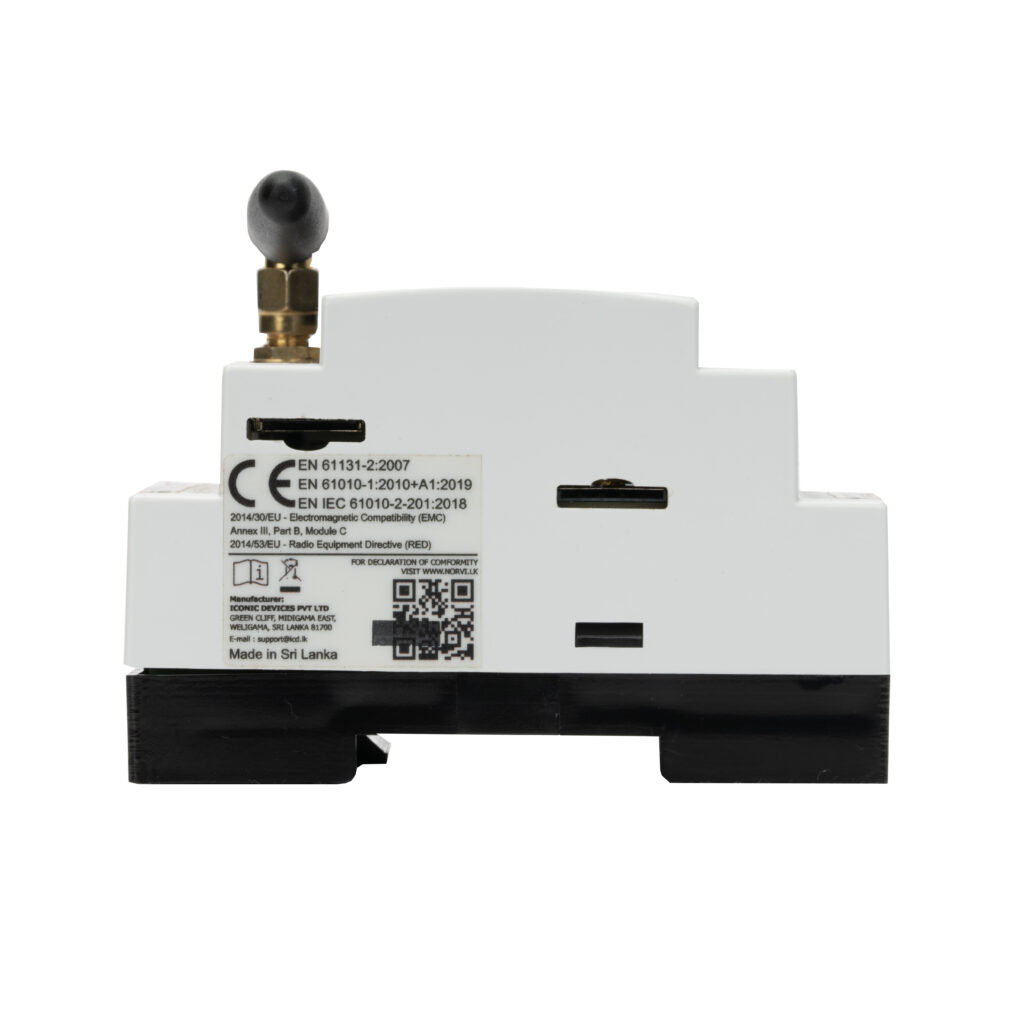

EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018

ESP32 GSM: Industrial Controller with GSM + WiFi

Industrial ESP32 GSM, Ready for Industrial Environments: Arduino and ESP-IDF

ESP32 GSM is a USB Programmable Controller with multiple connectivity channels. Ideal for an IoT gateway or data transmission applications.
The device is based on ESP32-WROOM32 SoC with GSM Connectivity.

It is I/O Compatible with industrial voltage levels and with added protection. Models are available with different variations on Input and Output options. Moreover, NORVI GSM Industrial ESP32 is expandable with Expansion modules.

$90.19$206.05

Select the Modem selection for the device

ESP32 GSM Series

Inside

ESP32-WROOM32

Dual Core 32bit 160-Mhz CPU

520 Kbytes SRAM / 4 Mb Flash

WIFI 802.11 b/g/n Bluetooth v4.2

Two timer groups, including 2 x 64-bit timers and 1 x main

watchdog in each group

SIM800L

Quad-band GSM/GPRS module

DTMF, MMS, MUX Fuctions

Embedded TCP/UDP protocols

Frequency Bands: 850/900/1800/1900MHz

GPRS multi-slot class: 12/10

QUECTEL EC21

Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE

DTMF, MMS, MUX Fuctions

Embedded TCP/UDP protocols

Frequency Bands: 850/900/1800/1900MHz

GPRS multi-slot class: 12/10

GSM-AE07-R

7 X

Digital Inputs

24V

Sink/Source Digital Inputs

6 X

5A Relay outputs

1 X

RS-485

0.96' OLED Display

GSM-AE07-T

7 X

Digital Inputs

24V

Sink/Source Digital Inputs

6 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

GSM-AE02-V

7 X

Digital Inputs

24V

Sink/Source Digital Inputs

4 X

0-10V Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

GSM-AE02-I

7 X

Digital Inputs

24V

Sink/Source Digital Inputs

4 X

4-20mA current input esp32

4-20mA Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

GSM-AE04-V

6 X

Digital Inputs

24V

Sink/Source Digital Inputs

6 X

0-10V Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

GSM-AE04-I

6 X

Digital Inputs

24V

Sink/Source Digital Inputs

6 X

4-20mA current input esp32

4-20mA Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

GSM-AE08-V

6 X

Digital Inputs

24V

Sink/Source Digital Inputs

4 X

0-10V Analog Inputs

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

W5500 Ethernet

GSM-AE08-I

6 X

Digital Inputs

24V

Sink/Source Digital Inputs

4 X

4-20mA current input esp32

4-20mA Analog Inputs

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

W5500 Ethernet

GSM-AE08-R

4 X

Digital Inputs

24V

Sink/Source Digital Inputs

4 X

5A Relay outputs

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

W5500 Ethernet

GSM-AE08-T

4 X

Digital Inputs

24V

Sink/Source Digital Inputs

4 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

W5500 Ethernet

GSM-AE03

8 X

Digital Inputs

24V

Sink/Source Digital Inputs

1 X

0-10V Analog input

Why should choose ESP32 GSM?

  1. GSM/LTE Connectivity: With built-in GSM/LTE connectivity, the ESP32 GSM series ensures reliable communication over cellular networks. This allows for remote monitoring and control in areas without Wi-Fi coverage, expanding the reach of your IoT deployment.

  2. Integrated Display and Button: The built-in 0.96 OLED display and front panel button provide convenient local interface options for device configuration and status monitoring, enhancing user interaction and usability.

  3. Versatile I/O Options: Featuring digital inputs, analog inputs, and relay outputs, the ESP32 GSM series offers flexibility in interfacing with various sensors, actuators, and devices. This allows for diverse application scenarios, from environmental monitoring to industrial automation.

  4. Ethernet Connectivity: In addition to cellular connectivity, the inclusion of Ethernet connectivity provides an alternative communication channel, offering redundancy and ensuring reliable data transmission in wired networking environments.

  5. DIN-Rail Mount: The DIN-Rail mount design allows for easy and secure installation in industrial settings, providing a standardized method for mounting the device within control panels or equipment racks.

  6. Expandability: The ESP32 GSM series is expandable with expansion modules, allowing for customization and scalability according to specific application requirements. This ensures future-proofing and adaptability to evolving IoT solutions.

  7. Industrial Compatibility: Designed to be I/O compatible with industrial voltage levels and featuring added protection, the ESP32 GSM series is suitable for harsh industrial environments, offering durability and reliability in challenging conditions.

Applications

  • Wireless IoT Gateways
  • Data transmission over cellular network
  • WiFi to GSM Bridge
  • MQTT Gateway

Downloads

dowload
AE07-R Datasheet
dowload
AE07-T Datasheet
dowload
AE04-V Datasheet
dowload
AE04-I Datasheet
dowload
AE08 Datasheet
dowload
AE02 Datasheet
Arduino Libraries Example program
