NORVI IIOT : Industrial ESP32 for IIOT Applications

NORVI IIOT

  • ESP32-WROOM32 Module
  • Built-in 0.96 OLED Display
  • Built-in Button on front panel
  • Digital Inputs
  • Analog Inputs
  • Relay Outputs
  • DIN-Rail mount

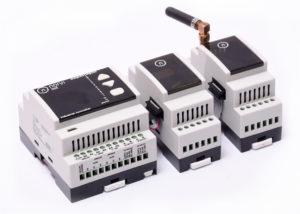

  • Supports Expansion port

EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018

ESP32 Logo
ESP32 Based Industrial Controller

Industrial ESP32, Ready for Industrial Environments : Arduino and ESP-IDF

USB Programmable Industrial ESP32 with OLED Display and din-rail mount.
It has I/O Compatible with industrial voltage levels, and with added protection. Six Models are available with different variations on Inputs and Output options. Moreover NORVI IIOT Industrial ESP32 is expandable with Expansion modules.
It is designed for protection and reliability. Complying with  2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C (Conformity to Type Based on Internal Production Control).

IIOT AE01/AE02

IIOT AE01/AE02 External Antenna

IIOT AE04

IIOT AE04 External Antenna

Processors

ESP32-WROOM32

Dual Core 32bit 160-Mhz CPU

520 Kbytes SRAM / 4 Mb Flash

WIFI 802.11 b/g/n Bluetooth v4.2

Two timer groups, including 2 x 64-bit timers and 1 x main

watchdog in each group

AE01-R

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

6 X

5A Relay outputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

AE01-T

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

8 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

AE02-V

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

6 X

0-10V Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

AE02-I

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

6 X

4-20mA current input esp32

4-20mA Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

AE04-V

ESP32-WROOM32

6 X

24V

Sink/Source Digital Inputs

6 X

0-10V Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

AE04-I

ESP32-WROOM32

6 X

24V

Sink/Source Digital Inputs

6 X

4-20mA current input esp32

4-20mA Analog Inputs

2 X

Open collector Transistor

1 X

RS-485

0.96' OLED Display

microSD card support

micro SD Card support

DS3221 RTC

DS3231 RTC with battery

AE03

ESP32-WROOM32

8 X

24V

Sink/Source Digital Inputs

1 X

0-10V Analog input

Applications

Downloads

Datasheet AE01/AE02/AE03
Datasheet AE04 V2
Datasheet AE04 V1
NORVI IIOT Series
Quick Start Guide
Arduino Libraries Example program
