Solar Charging IoT Node

M12-B Series

Programmable IoT Node

M12-B Series is your solution for Solar Charging IoT Node.

Designed for standalone installations in off-grid environments, the NORVI SSN range features a programmable IoT node with an inbuilt LiPo battery capable of powering the device and external sensors for up to 12 hours.

With provisions for connecting a 6V solar panel for charging, this device offers sustainable energy solutions. Choose from communication options including GSM/LTE, NB-IoT, LoRa, or Zigbee to suit your connectivity needs.

M11 B Series
M11 B Series
M11 B Series

Communication Options

GSM logo
NB-IoT communication
LoRa communication

I/O Configurations

  • 1 x Digital Input
  • 2 x Analog inputs (0 – 10V DC)
  • 1 x 12V 100mA Output (switchable)
  • 2 x Digital Input
  • 1 x 12V 100mA Output (switchable)
  • 1 x LoadCell input
  • 1 x Thermocouple input (K-type)

Products Highlights

  1. ESP32-WROOM32 SoC (System-on-Chip) inside: The ESP32-WROOM32 is a powerful microcontroller chip commonly used in IoT (Internet of Things) projects. It integrates a dual-core processor, Wi-Fi, Bluetooth, and various other features suitable for IoT applications.

  2. GSM/LTE, NB-IoT, LoRa Expansions supported: This device supports different communication protocols such as GSM/LTE (for cellular connectivity), NB-IoT (Narrowband IoT), and LoRa (Long Range), allowing it to connect to various networks depending on the application requirements.

  3. Integrated solar charging: The device has a built-in solar charging capability, meaning it can harness solar energy to power itself. This feature is particularly useful in remote or off-grid locations where traditional power sources may not be available.

  4. Built-in LiPo battery: Along with solar charging, the device comes with a built-in Lithium Polymer (LiPo) battery. This battery serves as a backup power source, ensuring uninterrupted operation even during periods of low solar energy availability or at night.

  5. 12V output to power external sensors up to 100mA: The device provides a 12-volt output that can be used to power external sensors or peripherals. It’s capable of delivering up to 100mA of current, making it suitable for a wide range of sensor types.

  6. Flexible I/O Combinations: The device offers flexible Input/Output (I/O) configurations, allowing users to connect and interface with various sensors, actuators, and other devices as needed for their specific application.

  7. IP67 Rated Enclosure: The device is housed in an enclosure that meets the IP67 rating standard. This means it is dust-tight and can withstand immersion in water up to a certain depth, ensuring durability and protection against environmental factors such as dust, moisture, and debris.

Connections & Schematics

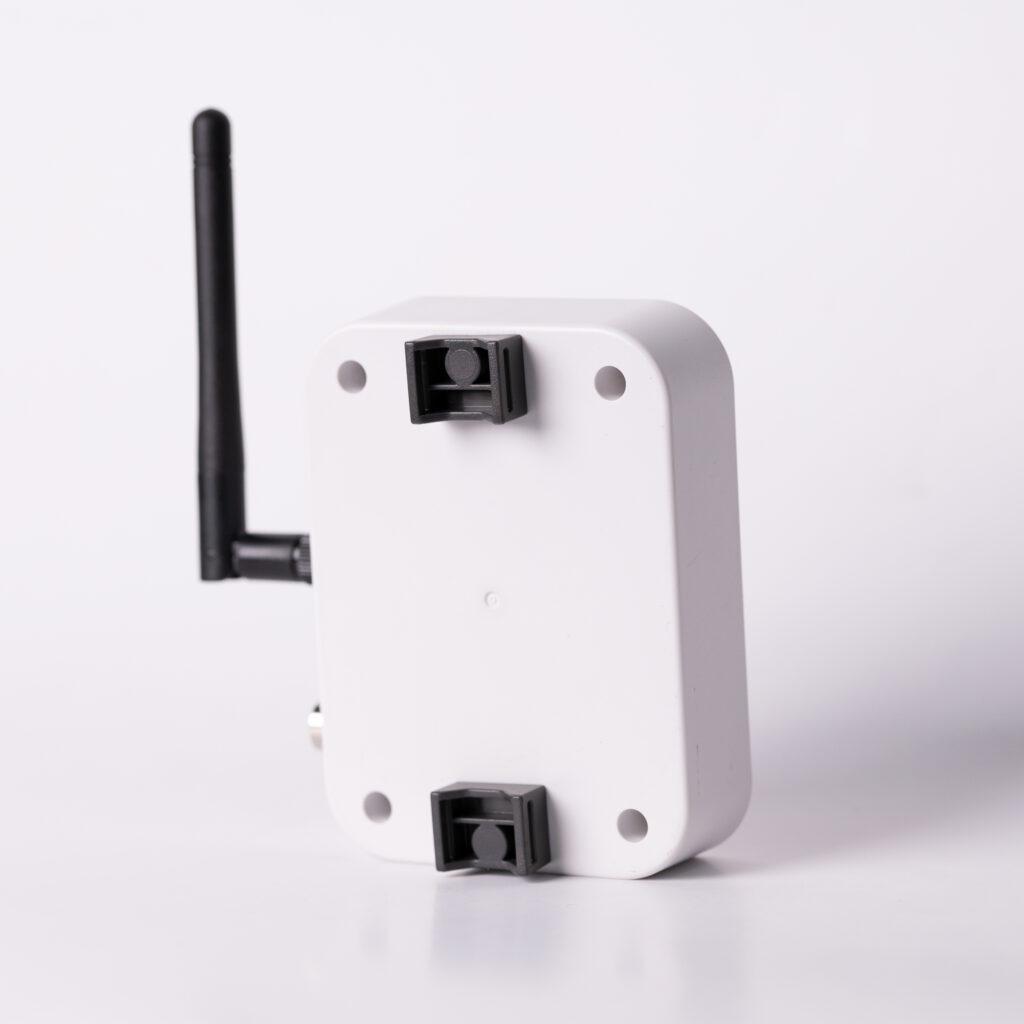

Mounting Options

Pole Mount Configuration
Wall mount screws

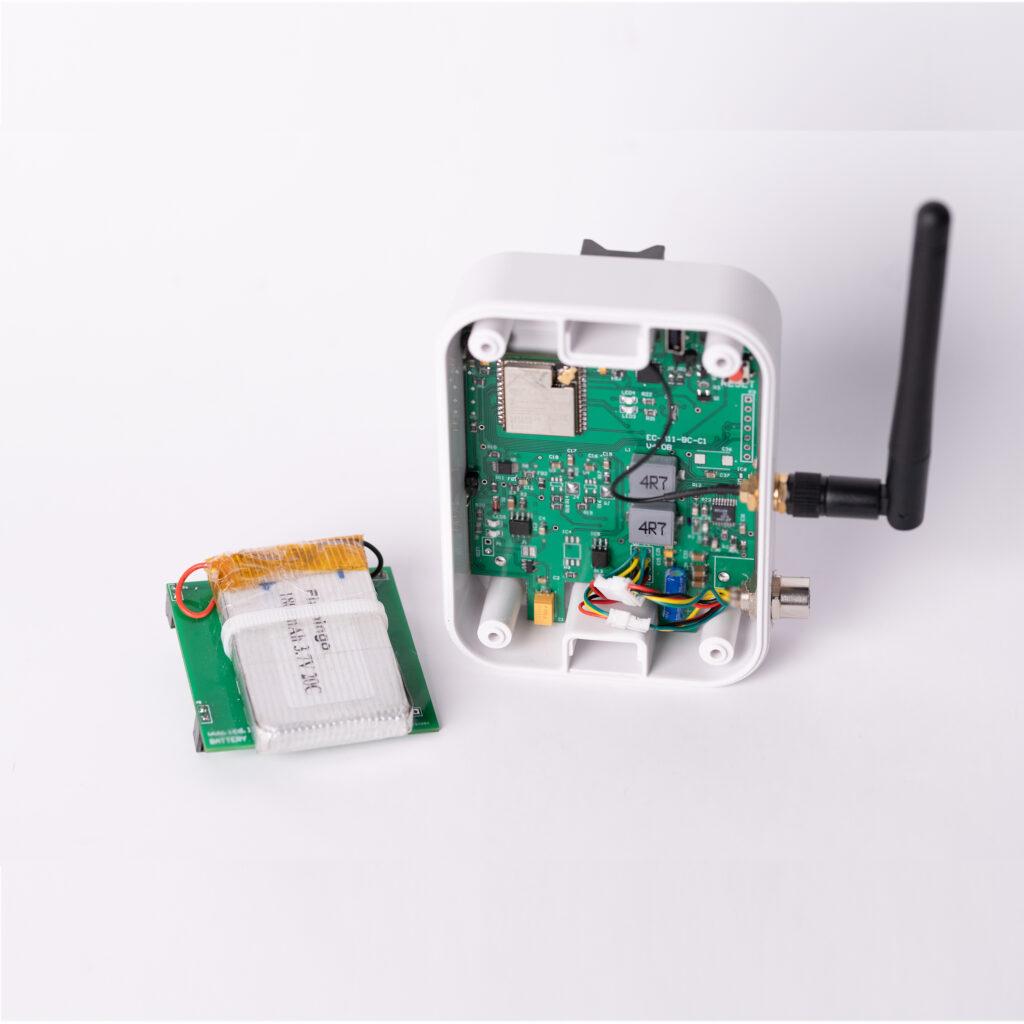

Package Contents

  • NORVI Controller
  • 1800mAh 3.7v LiPo battery
  • 8 Core Wire with connector – 2 meters
  • 2 Core Wire with connector – 2 meters
