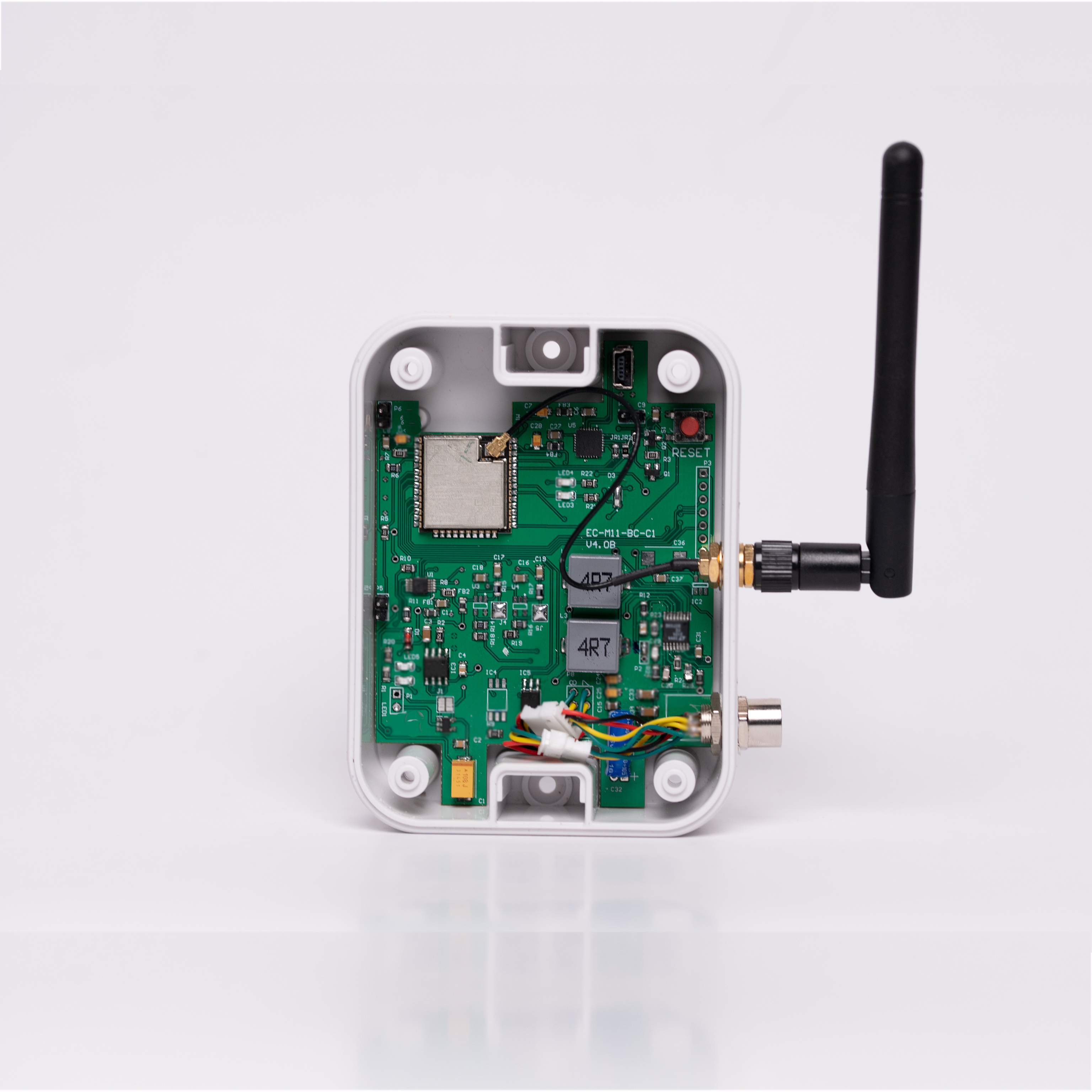

M12-C Series

Battery Powered IoT Node

STM32L1 Based

NORVI SSN range is made for standalone installations in environments where grid power is not available.
Inbuilt 4 x AA batteries can power the device and external sensors.
Only Low power communication, options are supported to ensure long battery life.
The device can be ordered with GSM/LTE , NB-IoT, LoRa or Zigbee 3 communication options.

Highlights

  • STM32L072CZT6 inside
  • GSM/LTE , NB-IoT , LoRa, Zigbee 3.0 supported
  • 4 x AA batteries
  • 12V output to power external sensors upto 100mA
  • Flexible I/O Combinations
  • IP67 Rated Enclosure

I/O Configurations

EC-M11-BC-C1
  • 1 x Digital Input
  • 2 x Analog inputs (0 – 10V DC)
  • 1 x 12V 100mA Output (switchable)
EC-M11-BC-C2
  • 2 x Digital Input
  • 1 x 12V 100mA Output (switchable)
EC-M11-BC-C3
  • 1 x LoadCell input
EC-M11-BC-C4
  • 1 x Thermocouple input (K-type)

Connections & Schematics

Mounting Options

Pole Mount Configuration
Wall mount screws

Downloads

Datasheet
